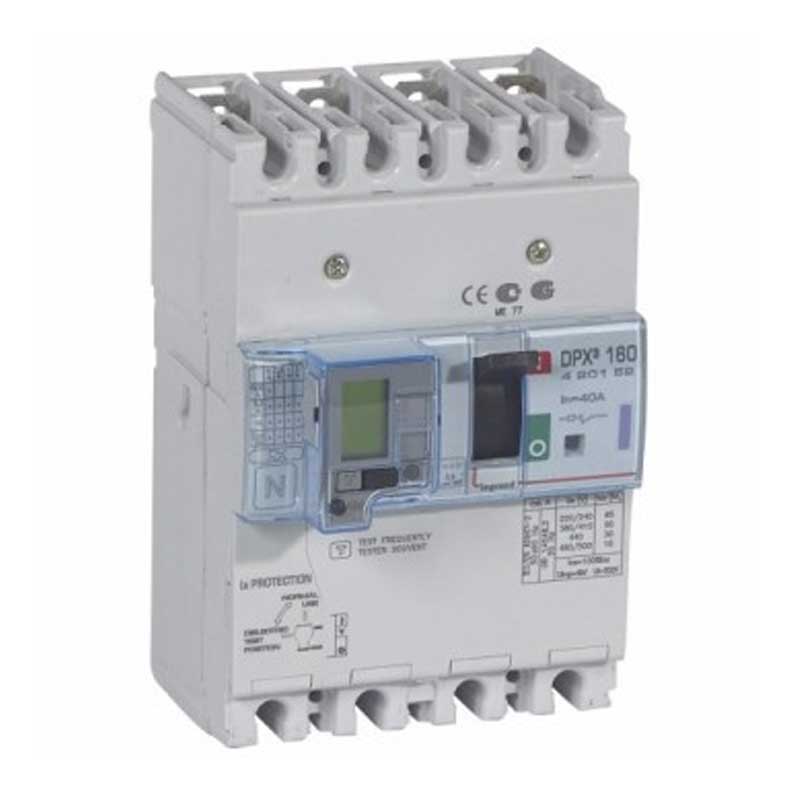

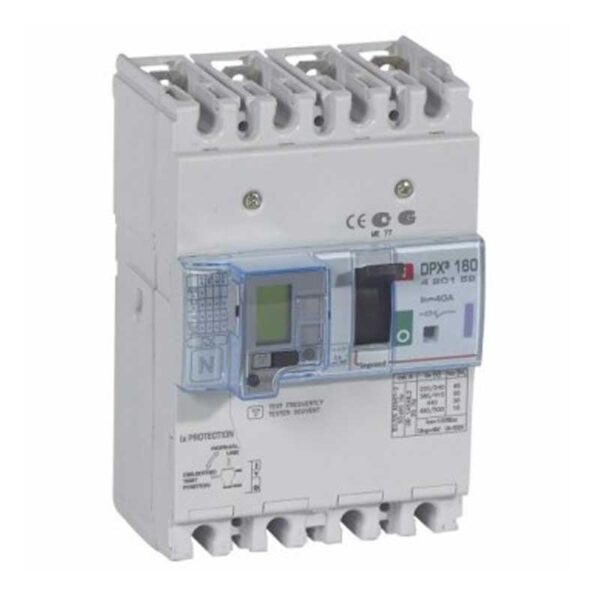

Legrand DPX3 160 40A Icu 50kA (400 V~) 4 Poles Thermal Magnetic MCCB with Electronic Earth Leakage Module 420152

Product Features :

• Thermal adjustable from 0.8 to 1 In
• Magnetic fixed at 10 In (fixed at 400 A for In 16 A and 25 A)
• Electronic earth leakage module with LCD screen
• Adjustable sensitivity: 0.03 – 0.3 – 1 – 3 A
• Adjustable tripping: 0 – 0.3 – 1 – 3s (with 0.03 A possible only 0s)
• Supplied with cage terminals 70 mm2 max. (flexible cable) or 95 mm2 max. (rigid cable) with accessories
• MCCBs for switching, remote tripping and protection of low voltage electrical system
• This MCCB can be fitted with accessories and DPX3 common auxiliaries
• Conform to IEC 60947-2
